Description

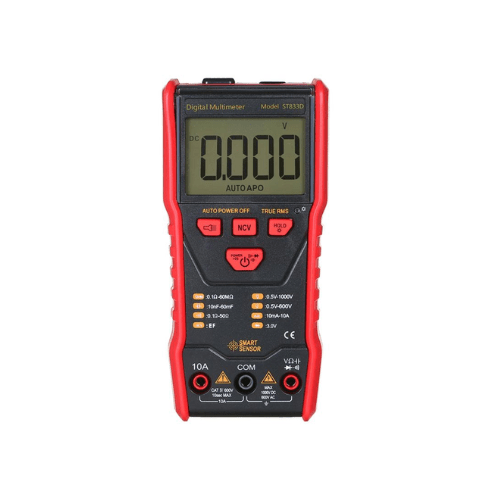

Product Description of  Smart Sensor – Digital LCD Multimeter:

• Dial Measuring
• – Live wire and neutral wire test.
• – Frequency test.
• – All unit symbol.
• – 5999 (3 5/6) bits automatic polarity display.
• – Humanity Design: Compact Look & Silicone Shell Protection & Back Support & Data Hold.
• – Clear Backlight: See the values on the screen clearly in the dark.
• – Automatic Shutdown: This function can also be canceled. (Please refer to the Users Manual.)
• Multifunction: AC and DC current test, AC and DC voltage test, resistance test, capacitance test, NCV test, diode on-off test.

Specifications:

• Model: SMART SENSOR ST833D
• Material: ABS
• Color: Red
• Power Supply: 2 * 1.5V AAA battery (NOT included)
• Display: LCD display
• Automatic Shutdown Time: 15 minutes
• Operating Temperature: 0~40? (32~104?)
• Operating Relative Humidity: ?80%
• DC Voltage Range: 6-1000V?(0.5%+3)
• DC Current Range: 60-600mA?(1.2%+10)
• AC Voltage Range: 6-750V?(0.8%+3)
• AC Current Range: 60-600mA?(1.2%+10)
• Resistance Range: 600? / 600k? / 40M??(0.8%+3)
• Capacitance Range: 600nF / 600?F / 30mF?(3.5%+20)
• Frequency Range: 10Hz~10MHz?(0.1%+3)
• Item Size: 14.2*7*3.5cm / 5.59*2.76*1.38in
• Item Weight: 187g / 6.6oz
• Package Size: 16.2*10.4*5cm / 6.38*4.09*1.97in
• Weight: 329g / 11.61ozPackage List:

• Digital Multimeter
• Test Lead Kit
• User Manual (English)
