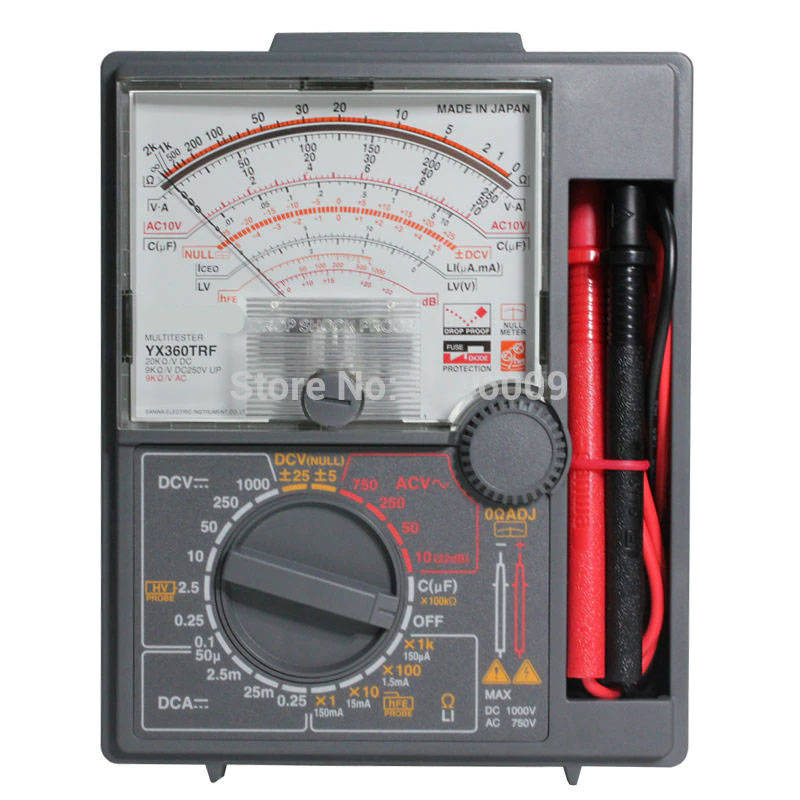

SUNWA Analog Multimeter or Tester Yx-360trd – With Warranty
Browse:
SUNWA Analog Multimeter or Tester Yx-360trd – With Warranty
Browse:
SUNWA Analog Multimeter or Tester Yx-360trd – With Warranty
SKU: CRE โ€“ Gadget Store -SUNWA Analog Multimeter or Tester Yx-360trd - With Warranty Categories: , Tag:

SUNWA Analog Multimeter or Tester Yx-360trd – With Warranty

Categories:

රු 4,270.50

Guarantee safe and secure checkout

Loading...

Description

Product Details of SUNWA Analog Multimeter or Tester Yx-360trd – With Warranty

Features:

  • Drop shock proof meter
  • Null (zero center) meter 5 / 25 in DCV
  • High resistance up to 200M with low voltage
  • Protective body cover
  • Capacitance, dB, Li measurement
  • Bandwidth is 30 to100kHz (AC10V)

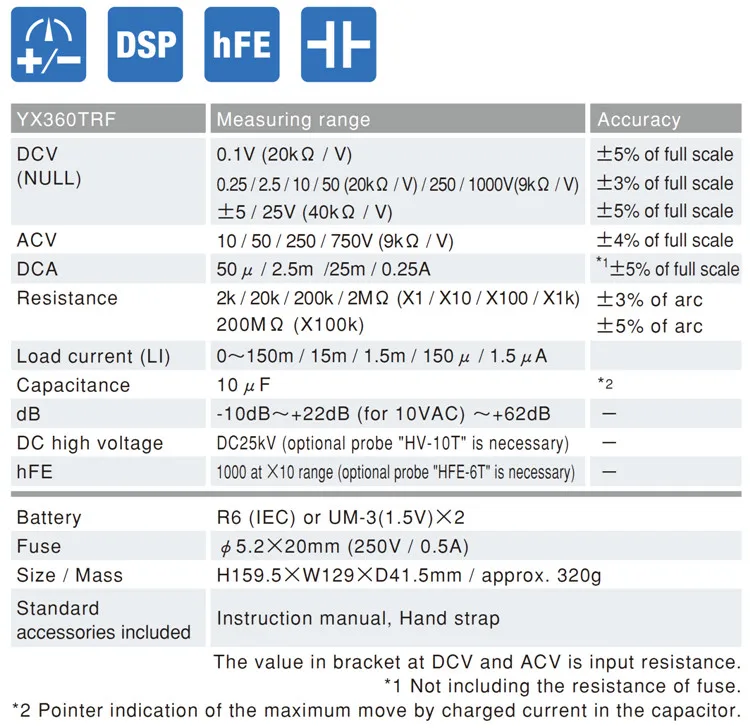

Specifications:

Function Measuring Range Accuracy
DCV (Null) 0.1 V (20khm/V)
0.25/2.5/10/50 (20k /V)/250/1000V (9k /V)
5/25V (40khms/V)
5%of full scale
3%of full scale
5%of full scale
ACV 10/50/250/750V(9Khms/V) 4%of full scale
DCA 50/2.5m/25m/0.25A 1 – 5%of full scale
??Resistance 2K/20K/200K/2M (X1/X10/X100/X1K) 200M (X100K)

3%of arc

5%of arc

Load Current (LI) 0~150m/15m/1.5m/150/1.5A
Capacitance 10F 2
dB -10dB~+22dB (for 10VAC)~+62dB
DC High Voltage DC25kV (optional probe *HV-10T* is necessary)
hFE 1000 at X10 range (optional probe *HFE-6T* is necessary)
Battery R6 (IEC) or UM-31.5VX2 (May not be included in the package)
Fuse

5.2X20mm (250V/0.5A)

Size / Weight

H159.5XW129XD41.5mm/approx. 320g

YX360TRF

 0

YX360TRF 2

YX360TRF 7

YX360TRF 4

YX360TRF 3

YX360TRF 5YX360TRF 6

YX360TRF 8YX360TRF 1
