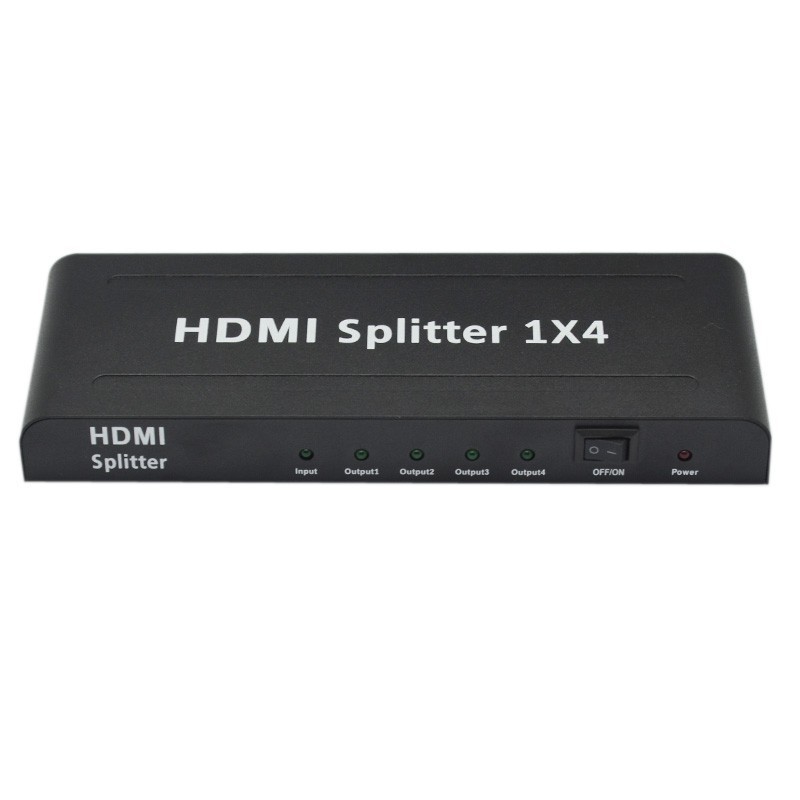

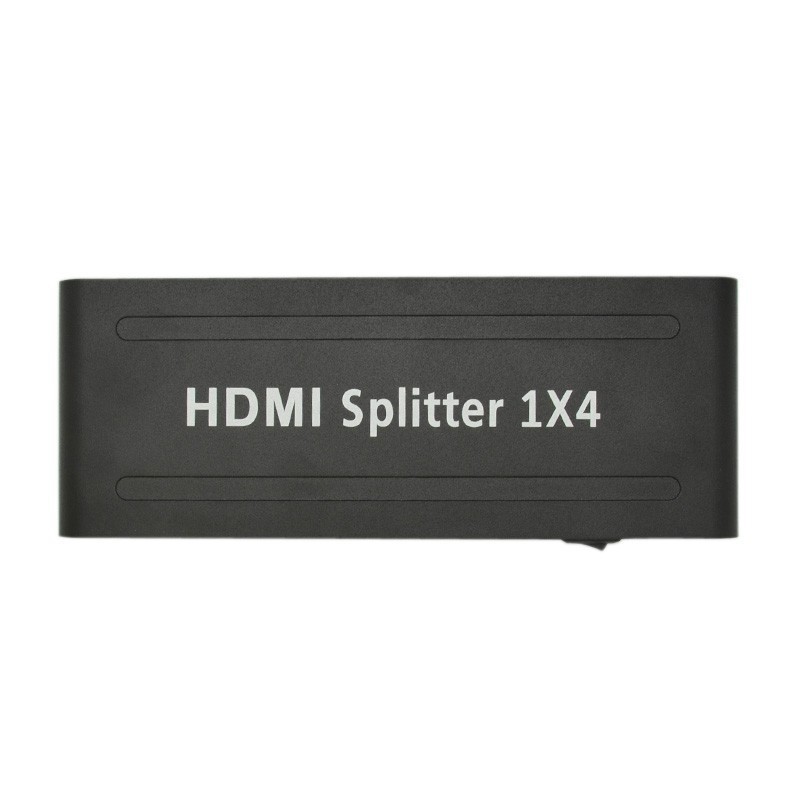

Product Details of HDMI Splitter 4 Port 1080P HD Video 3D HDMI Splitter HDMI 3D Splitter Amplifier HDTV

Features:

• input and many outputs(splitter)
• Approved by HDMI Attached Lad
• Full support 1080P HDTV
• HDCP compliant
• Support DTS,Dobby,7.1 Channel audio
• Gold plated connector
• Cable Fixing bolt for long cable
• Plug n play
• Amplifier and Equalizer function for extend  the HDMI cable
• Rack mounting kit and wall mounting kit version

Application:

1,Splitter from 4 Digital-Video or Digital-Audio Video Sources

2,Digital TV ,HDMI Flat Panel Monitors ,HDTV

3,DVD Players, Satellite Receivers, Set-Top Boxes

4,Digital Projectors

5,Audio Video Receivers

6,Other HDMI-enables devices

Specification:

Color: Black
Input: 1 Way
Output 4 ways
Connector: HDMI type A standard 19 pins Female
Input/ Output TMDS signal: 0.5-1.5Voltsp-p(TTL)
Input/ Output DDC signal: 5Voltsp-p(TTL)
HDMI version: HDMI 1.4b
HDCP version: HDCP1.3
Single link range: 1920 x 1080
HDMI Resolution: 1080p,1080i, 720p, 576p, 576i,480p, 480i
Input cable distance: 10m AWG26 HDMI 1.3 standard cable
Output cable distance: 10m AWG26 HDMI 1.3 standard cable
Max bandwidth: 225MHz
Max tate:6.75Gbps
Max working current: 500mA
Power adapter format: Input: AC(50/60HZ) 100V-240V,Output: DC 5V/1A
Dimension(L x W x H): 176x67x21(mm)
